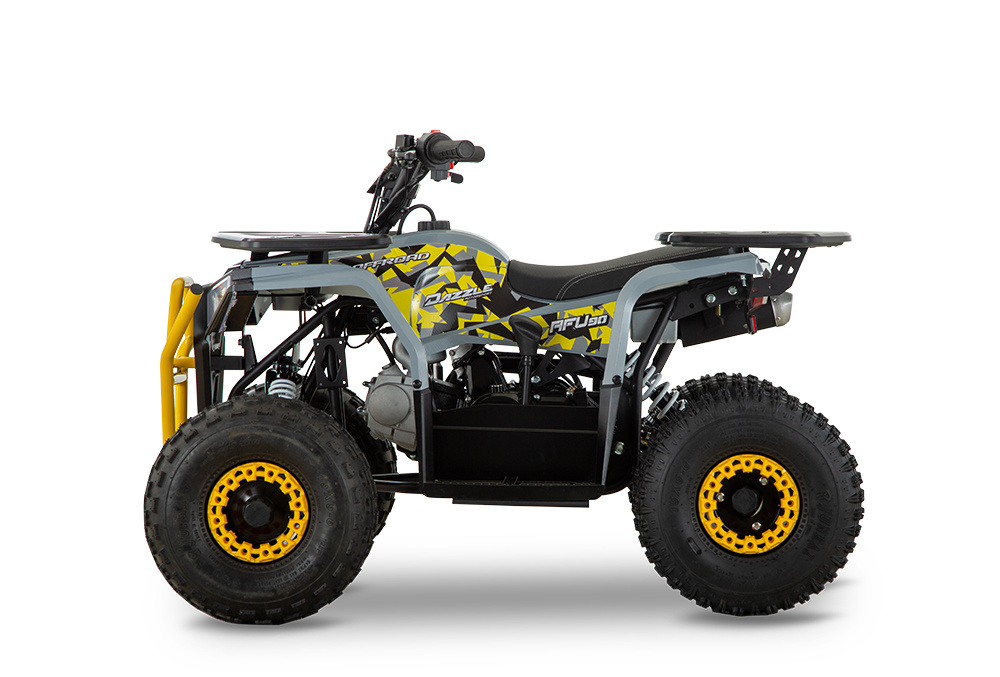

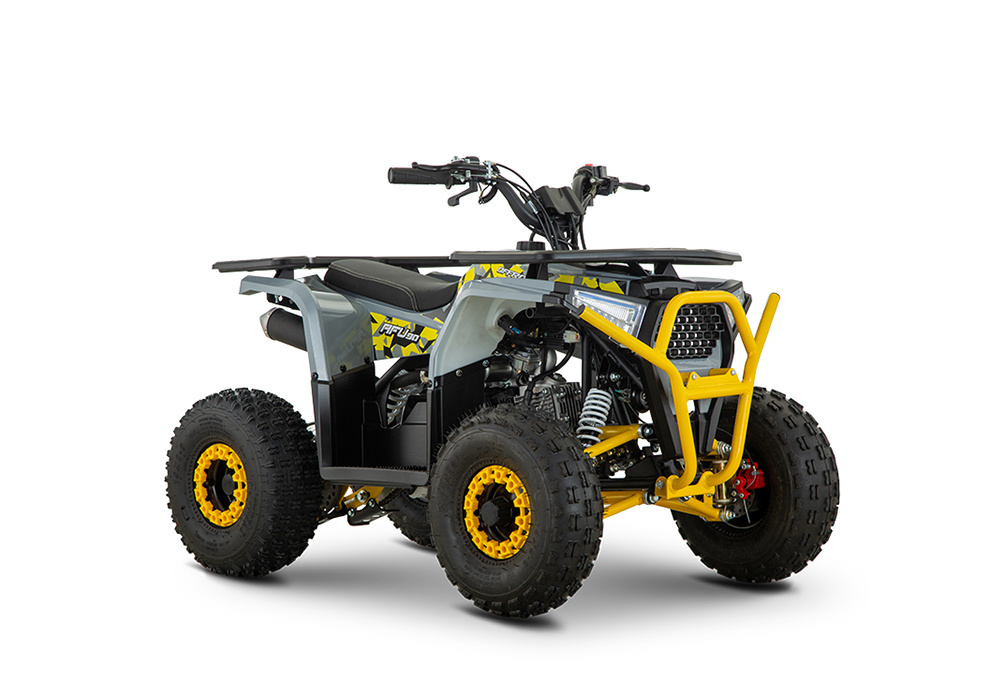

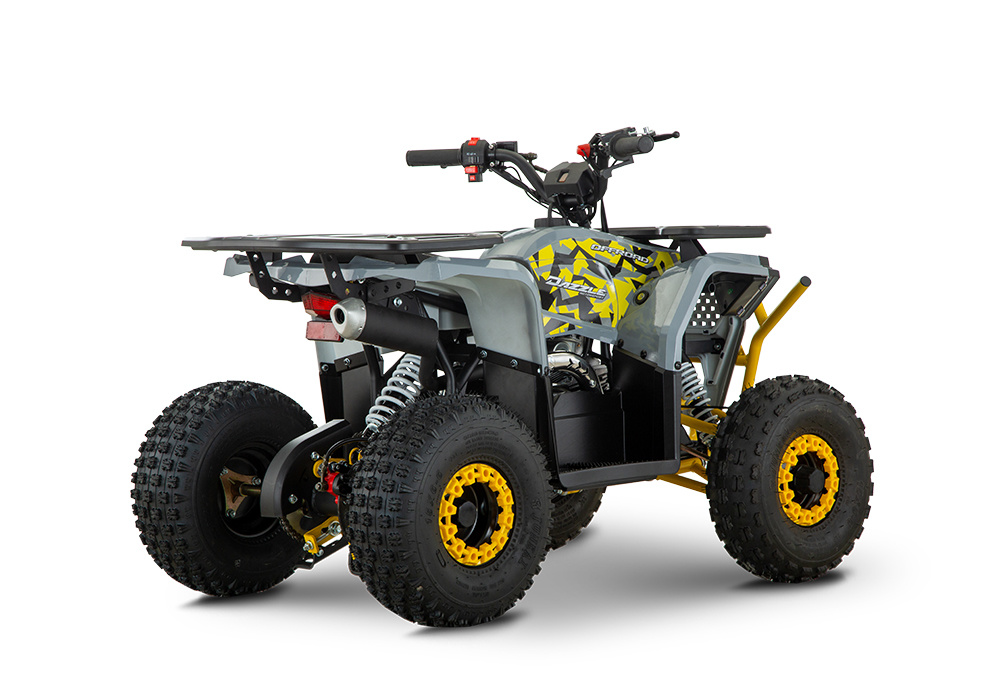

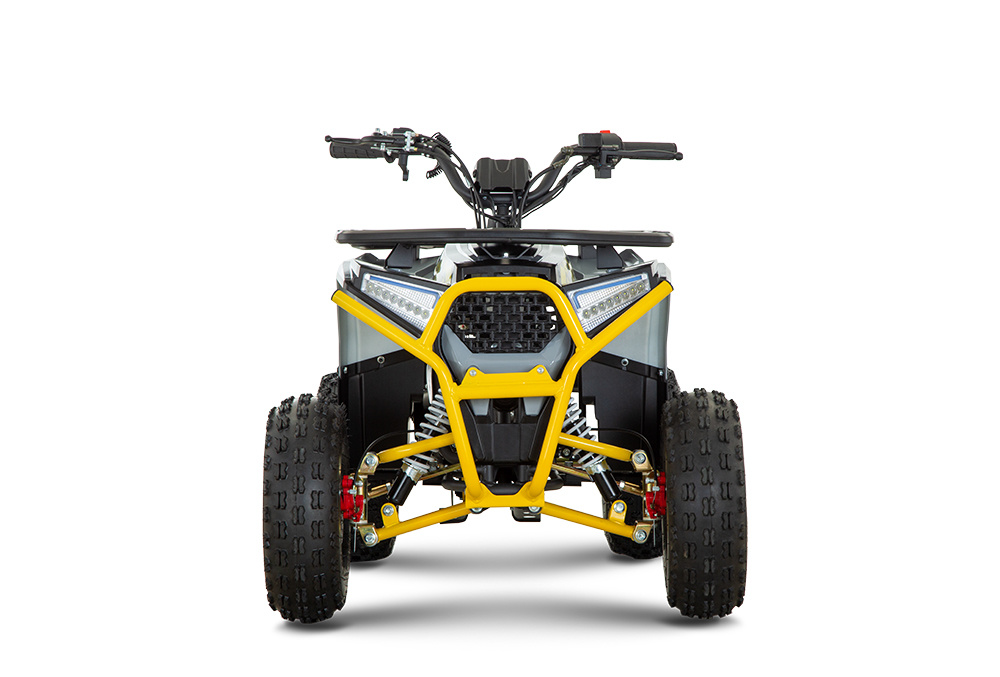

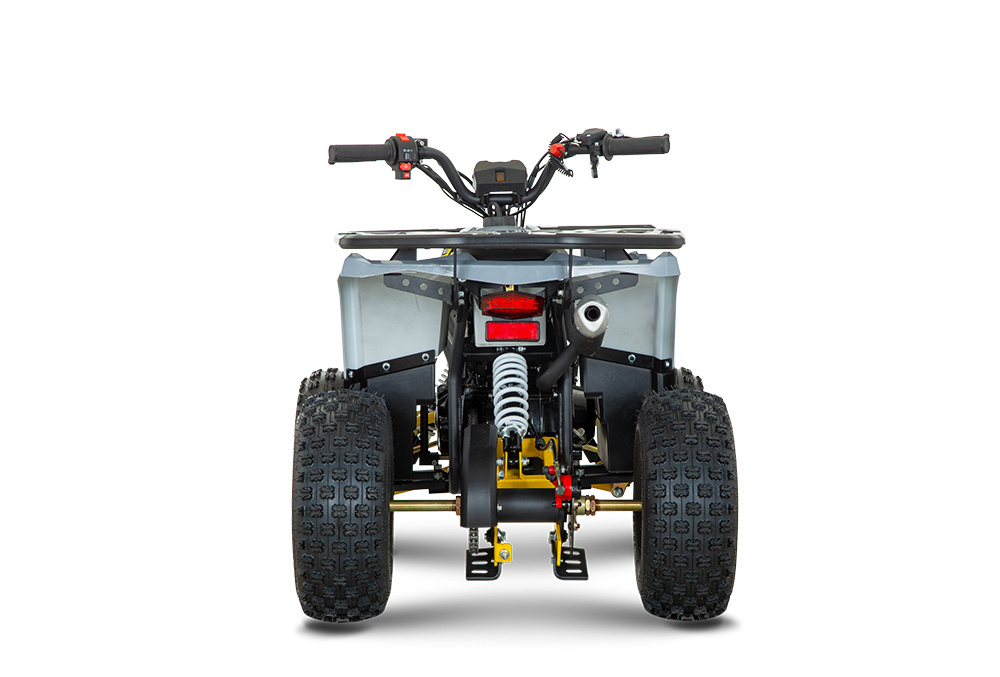

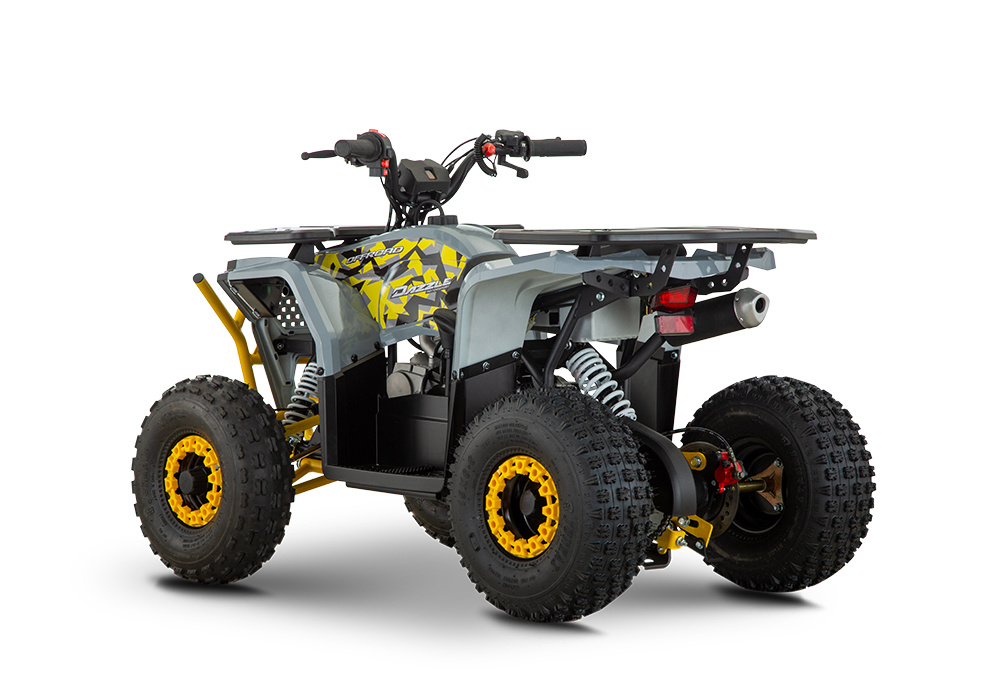

AFU90
OVERVIEW
| Engine Type | Transmission System | Suspension |
| 4-stroke, single-cylinder, air-cooled, horizontal | Chain drive | Independent Double A-Arm |
| Maximum Speed | Dimension | Seat Height |
| ≥ 35 km/h | 1200 × 780 × 830 mm | 600 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Engine Type | 4-stroke, single-cylinder, air-cooled, horizontal |
| Displacement | 107 ml |
| Bore × Stroke | 52.4 × 49.5 mm |
| Maximum Power | 4.7 kW / 8500 rpm |
| Maximum Torque | 6.9 N·m / 6000 rpm |
| Ignition System | C.D.I. electronic ignition |
| Transmission System | Chain drive |
| Length x Width x Height | 1200 × 780 × 830 mm |
| Wheelbase | 805 mm |
| Minimum Ground Clearance | 60 mm |
| Seat Height | 600 mm |
| Net Weight | 81 kg |
| Rated Load Capacity | 65 kg |
| Fuel Tank Capacity | 1.6 L |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Mechanical disc brake |
| Rear Brake | Hydraulic disc brake |
| Front Tire | 15×5-6, tubeless |
| Rear Tire | 15×6-6, tubeless |
