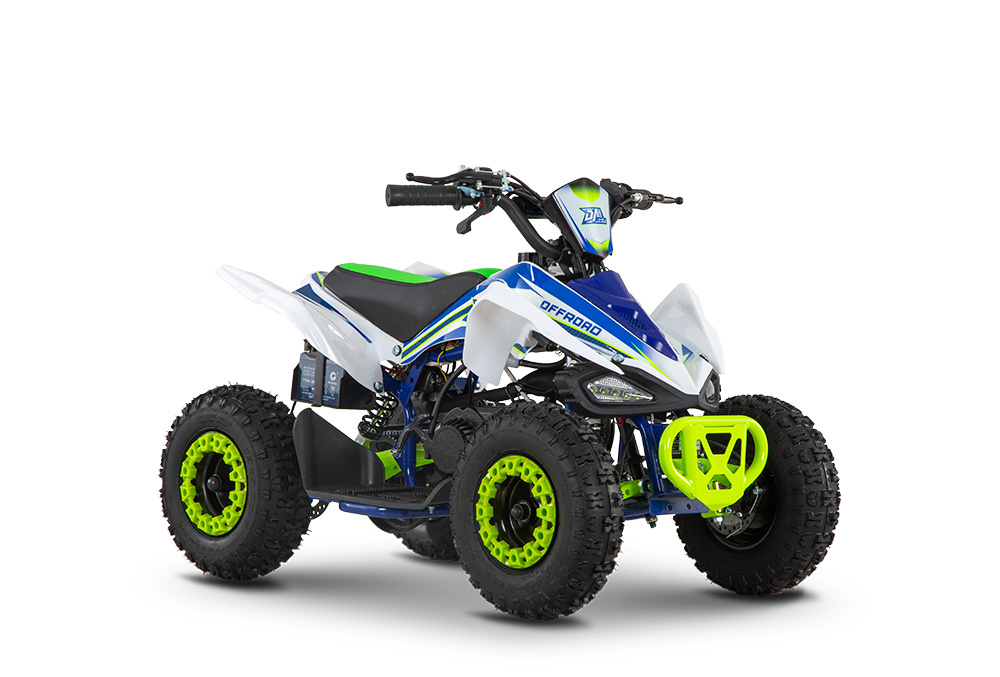

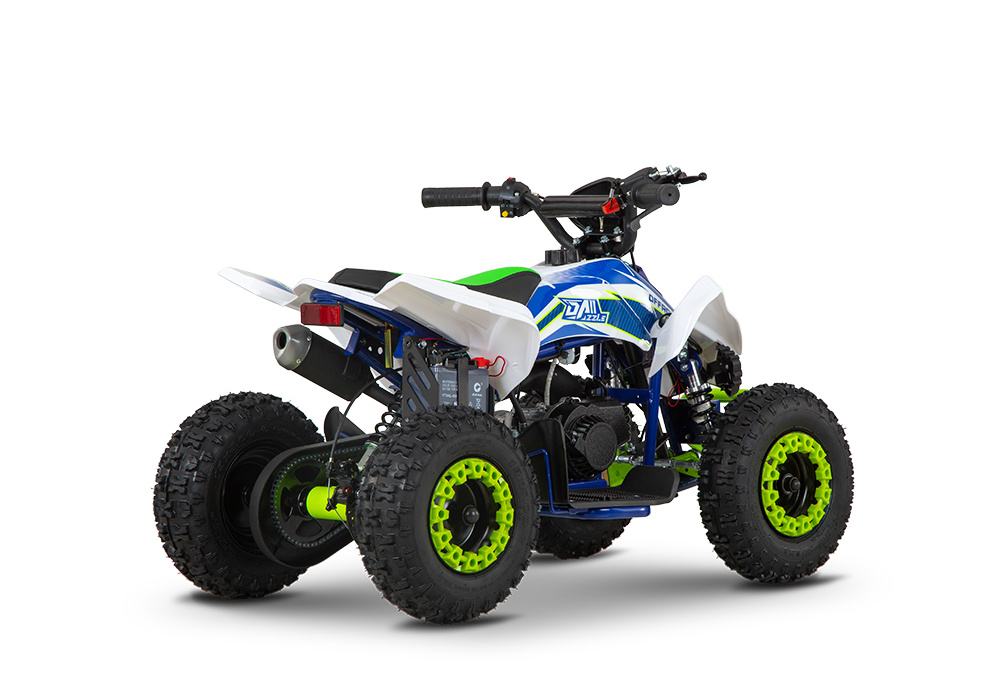

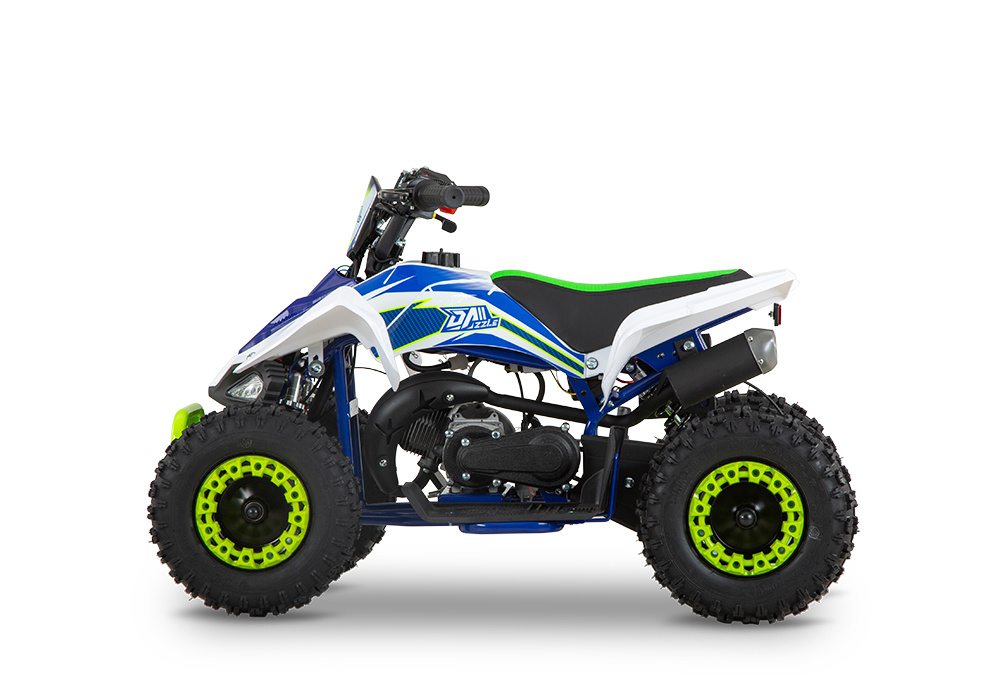

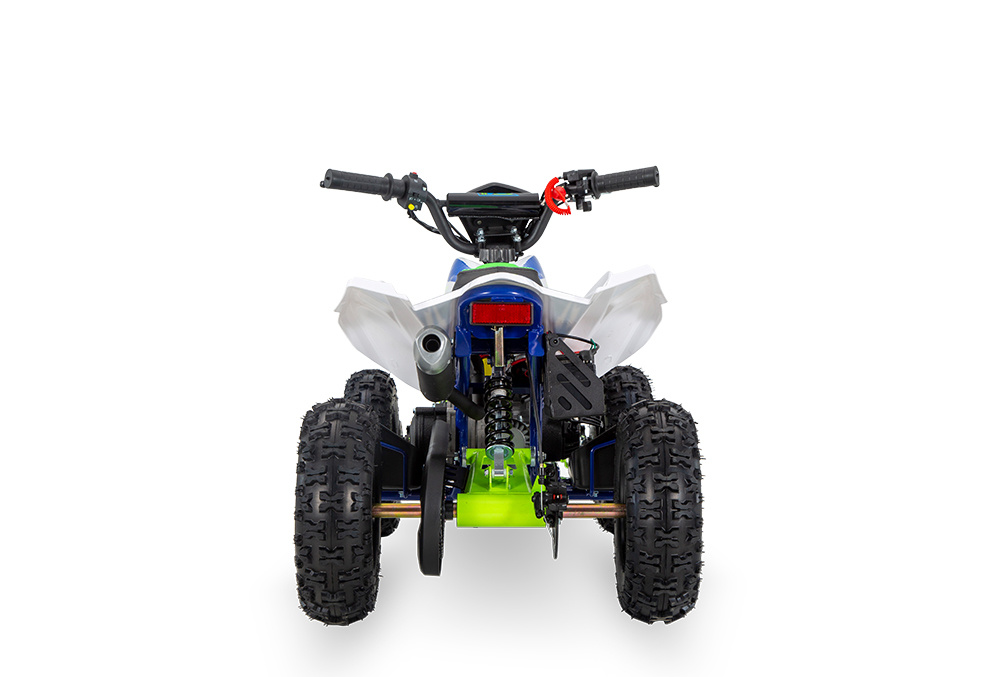

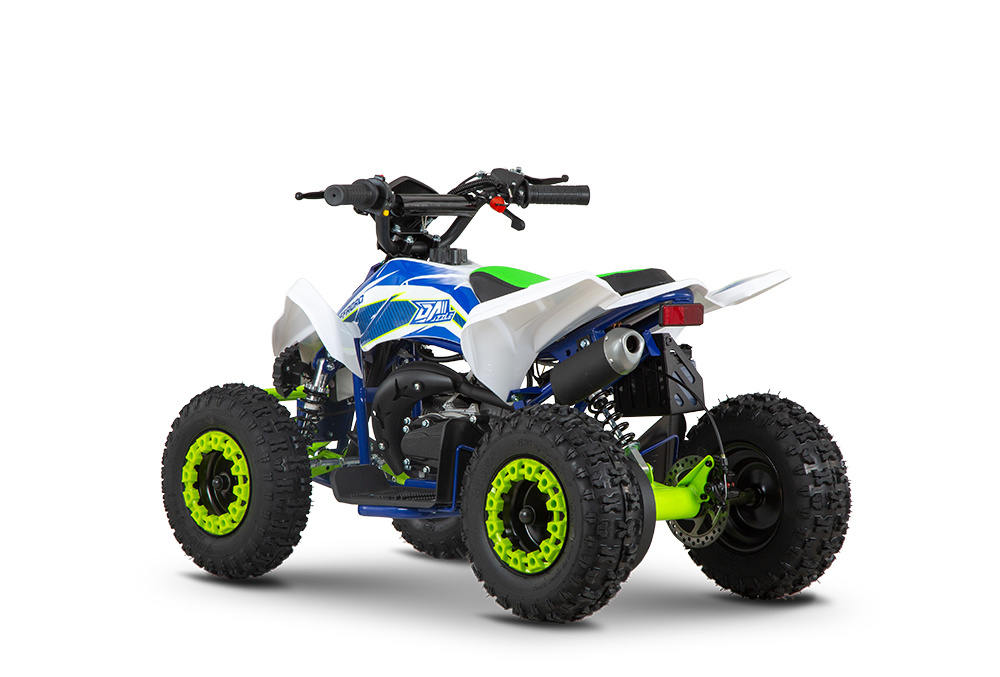

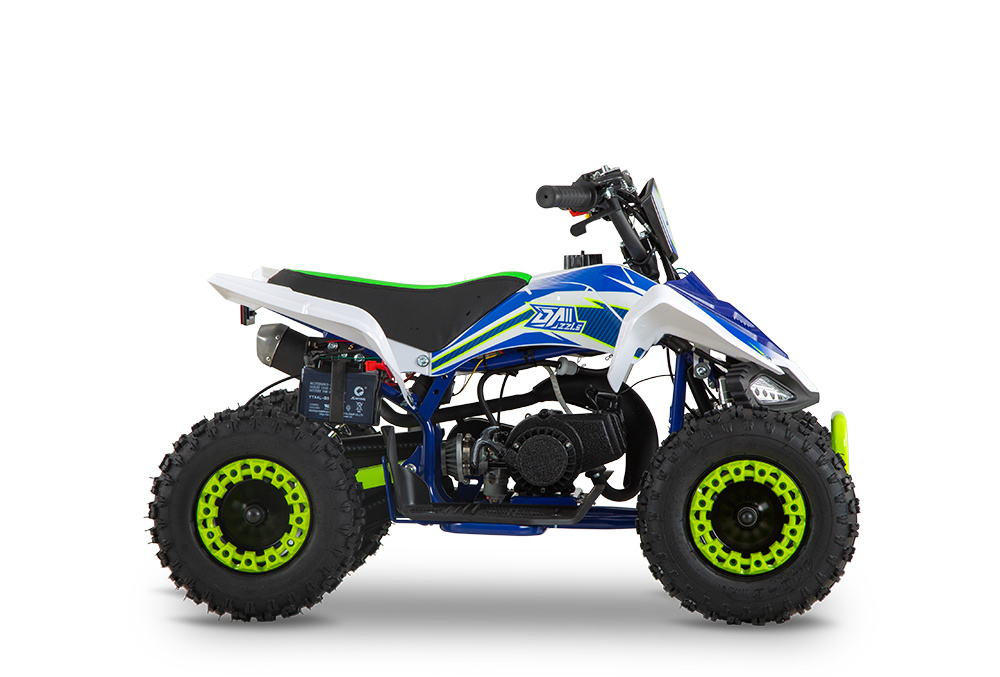

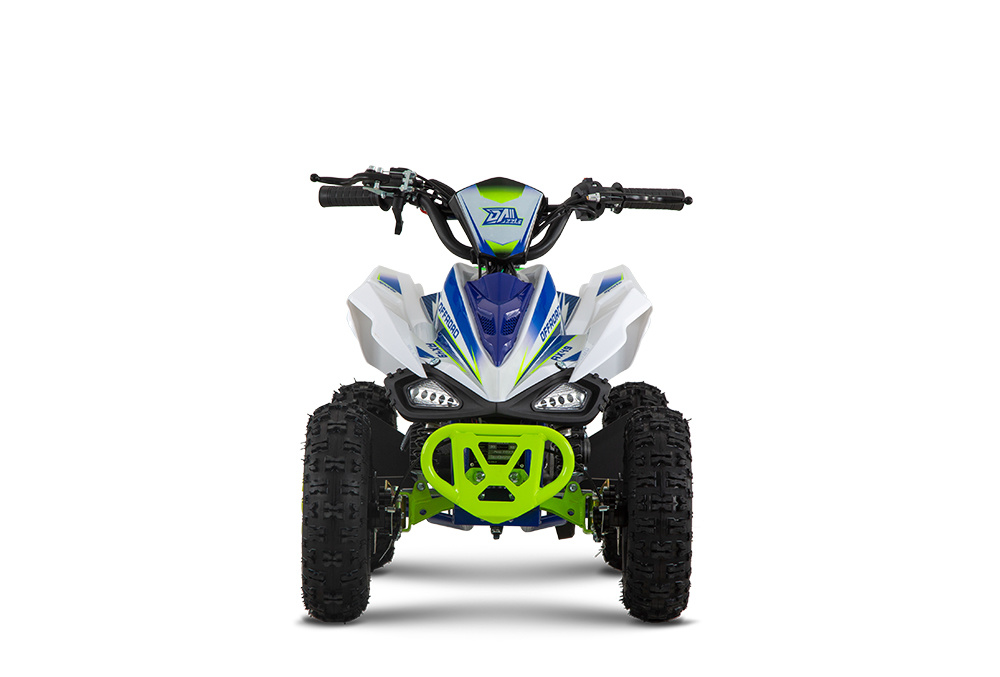

AX49
OVERVIEW
| Engine Type | Transmission System | Suspension |
| 2-stroke, single-cylinder, air-cooled, horizontal | Automatic, Chain drive | Independent Single A-Arm |
| Maximum Speed | Dimension | Seat Height |
| ≥ 25 km/h | 1020 × 565 × 685 mm | 480 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Engine Type | 2-stroke, single-cylinder, air-cooled, horizontal |
| Displacement | 49 ml |
| Bore × Stroke | Ф44 mm × 32 mm |
| Maximum Power | 1.47 kW / 4000 rpm |
| Maximum Torque | 2.1 N·m / 3500 rpm |
| Ignition System | C.D.I. electronic ignition |
| Transmission System | Automatic, Chain drive |
| Length x Width x Height | 1020 × 565 × 685 mm |
| Wheelbase | 715 mm |
| Minimum Ground Clearance | 70 mm |
| Seat Height | 480 mm |
| Net Weight | 36kg |
| Rated Load Capacity | 45 kg |
| Fuel Tank Capacity | 1.5 L |
| Front Suspension | Independent Single A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Mechanical disc brake |
| Rear Brake | Mechanical disc brake |
| Front Tire | 4.10-6, tubeless |
| Rear Tire | 13×5.00-6, tubeless |
