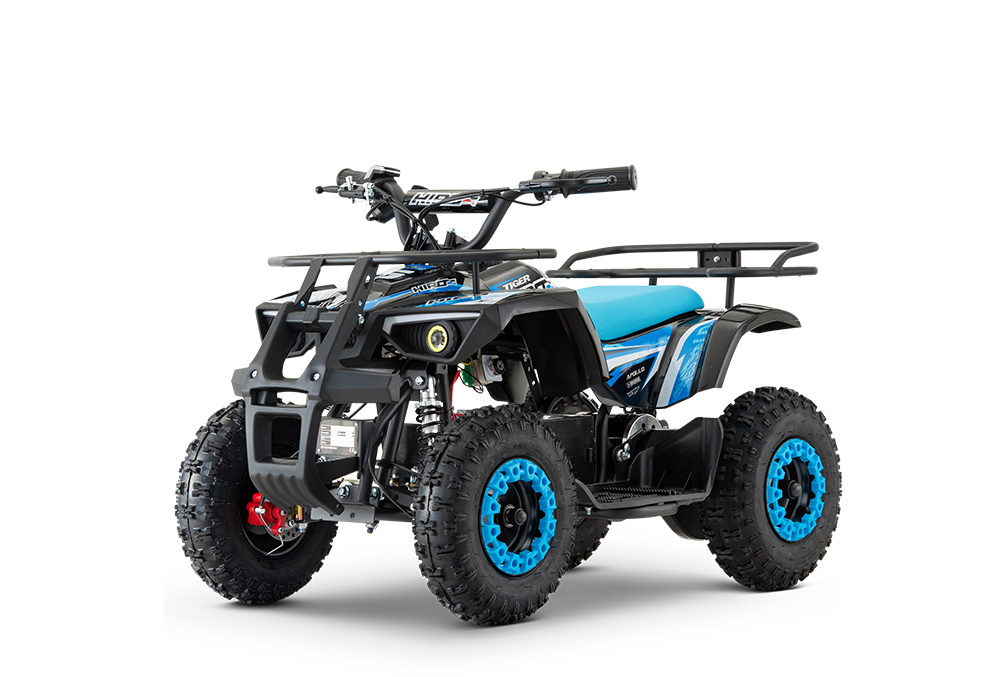

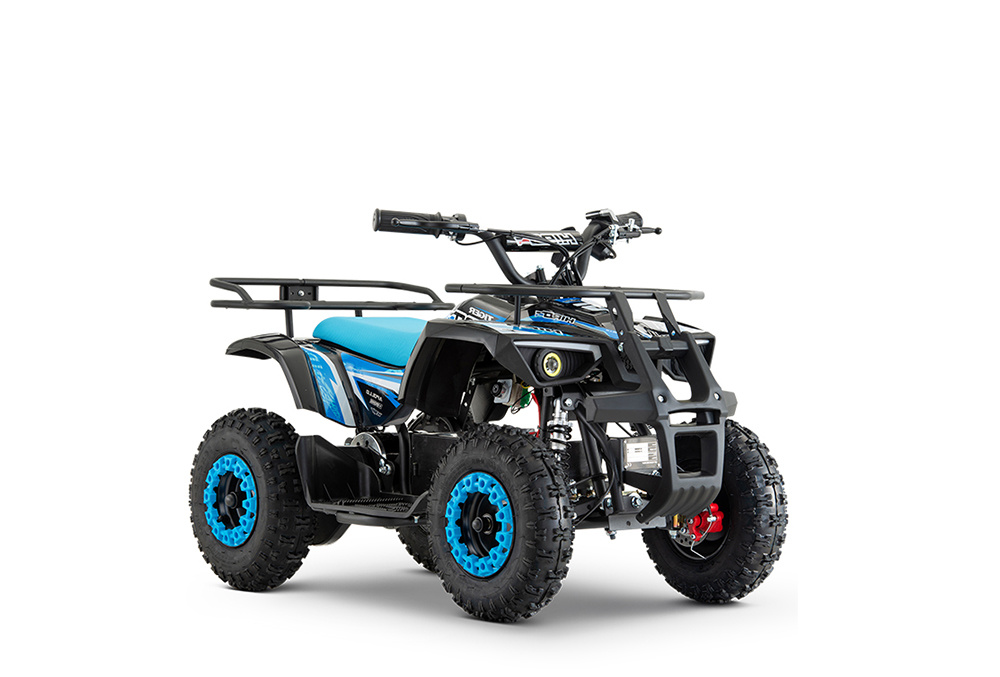

FFL800
OVERVIEW
| Motor Type | Battery | Range |
| Brushed motor | 36V / 12AH | 15 km |
| Maximum Speed | Dimension | Seat Height |
| ≥ 23 km/h | 1080 × 580 × 670 mm | 510 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Motor Type | Brushed motor |
| Motor Power | 800W |
| Rated Voltage | 36V |
| Drive Type | Chain drive |
| Length x Width x Height | 1080 × 580 × 670 mm |
| Wheelbase | 715 mm |
| Minimum Ground Clearance | 60 mm |
| Seat Height | 510 mm |
| Net Weight | 49 kg |
| Rated Load Capacity | 45 kg |
| Range | 15 km |
| Front Suspension | Independent Single A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Mechanical disc brake |
| Rear Brake | Mechanical disc brake |
| Front Tire | 4.10-6, tubeless |
| Rear Tire | 13×5.00-6, tubeless |
