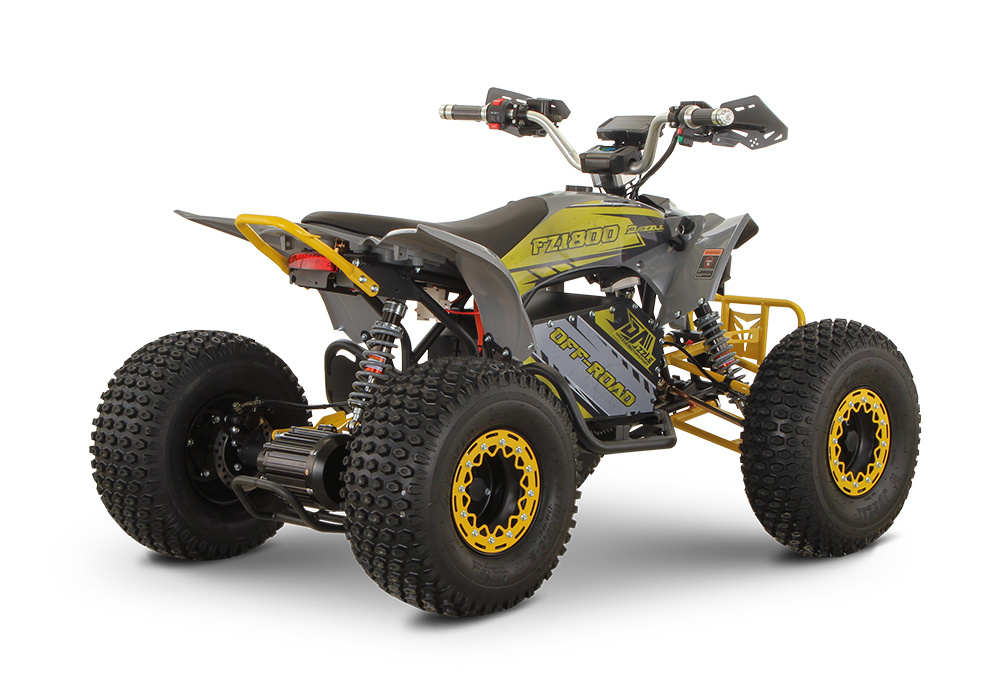

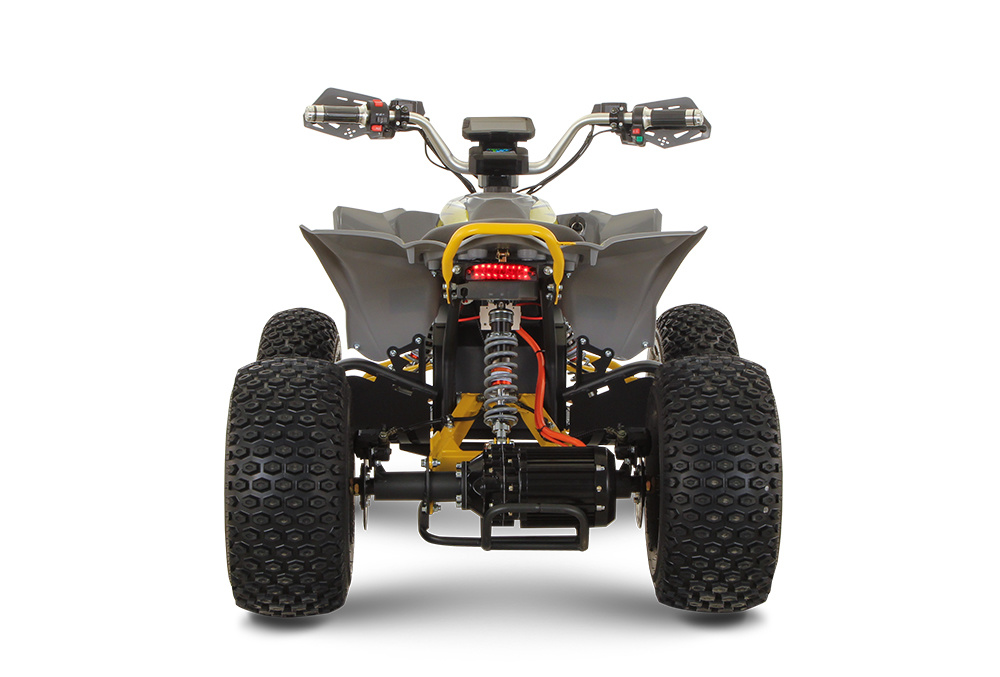

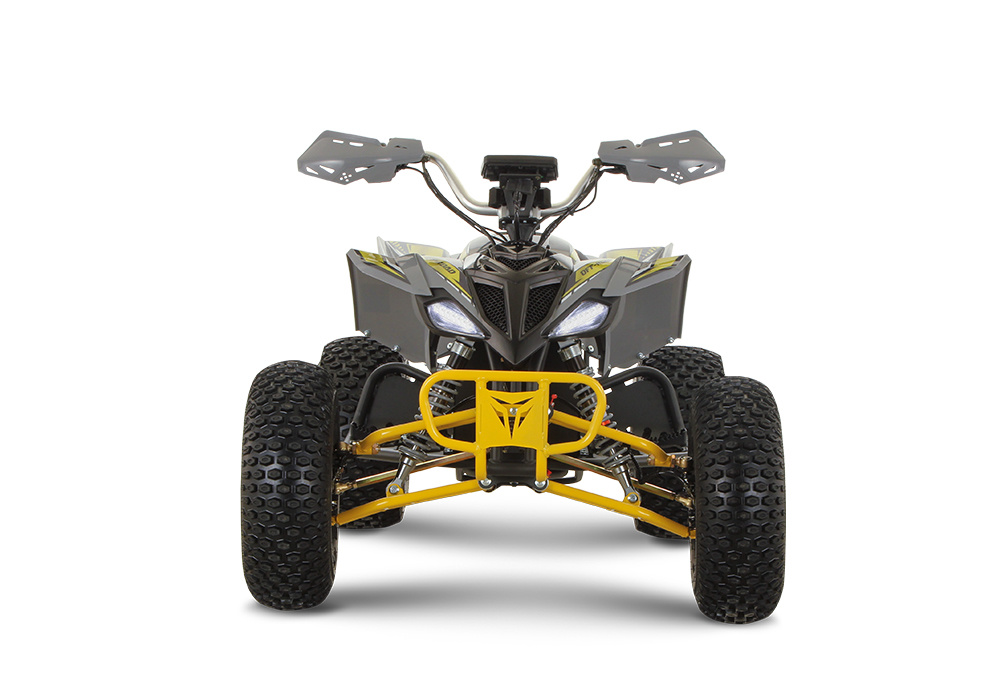

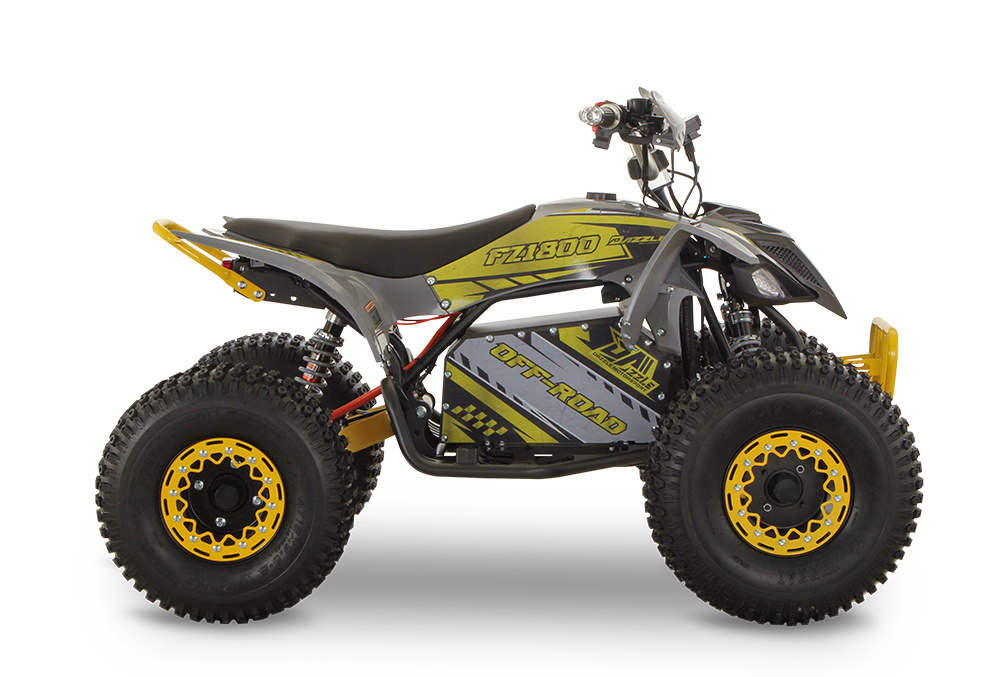

FZ1800
OVERVIEW
| Motor Type | Battery | Range |
| Brushed motor | Chaowei 60V/20AH | 30 km |
| Maximum Speed | Dimension | Seat Height |
| ≥ 55 km/h | 1500 × 1050 × 920 mm | 700 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Motor Type | Brushed motor |
| Motor Power | 1800W |
| Rated Voltage | 60V |
| Drive Type | Shaft transmission |
| Length x Width x Height | 1500 × 1050 × 920 mm |
| Wheelbase | 975 mm |
| Minimum Ground Clearance | 115 mm |
| Seat Height | 700 mm |
| Net Weight | 130 kg |
| Rated Load Capacity | 82 kg |
| Range | 30 km |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Front Tire | 19×7-8, tubeless |
| Rear Tire | 18×9.5-8, tubeless |
