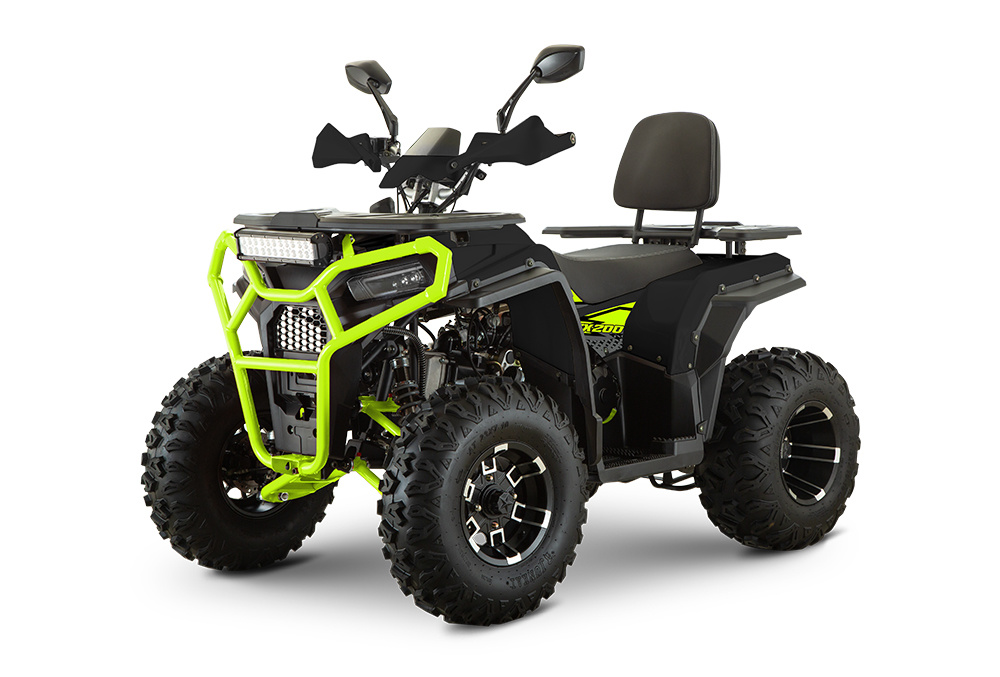

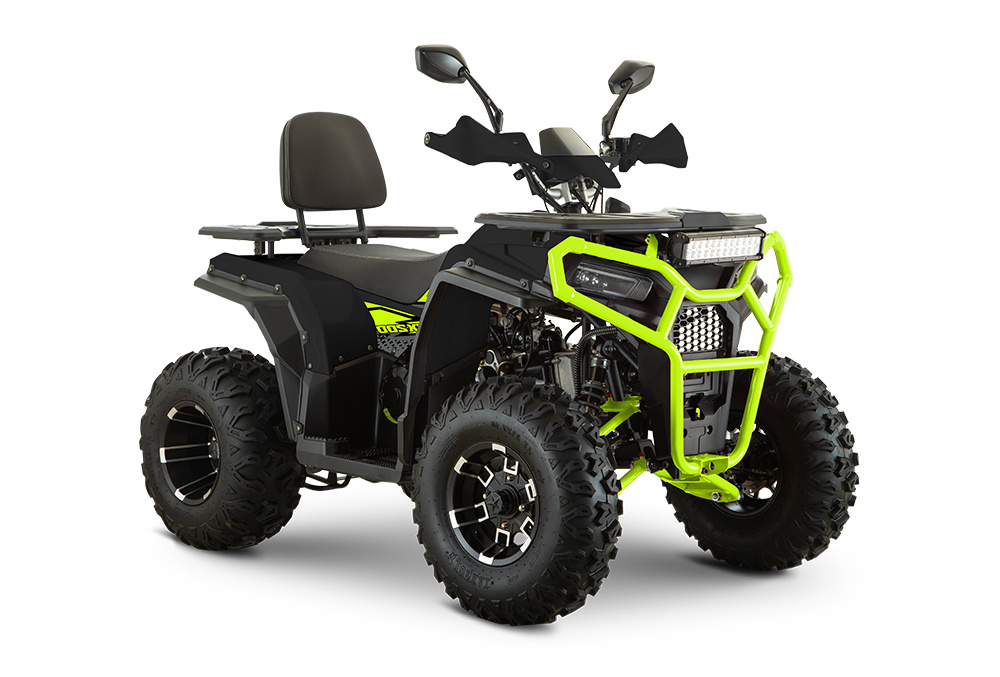

AFX200
OVERVIEW
| Engine Type | Transmission System | Suspension |
| 4-stroke, single-cylinder, oil & air-cooled, horizontal | Automatic F/N/R, CVT, Chain drive | Independent Double A-Arm |
| Maximum Speed | Dimension | Seat Height |
| ≥ 60 km/h | 1800 × 1060 × 1130 mm | 810 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Engine Type | 4-stroke, single-cylinder, oil & air-cooled, horizontal |
| Displacement | 177.3 ml |
| Bore × Stroke | 62.5 × 57.4 mm |
| Maximum Power | 7.3 kW / 7500 rpm |
| Maximum Torque | 10 N·m / 6000 rpm |
| Ignition System | C.D.I. electronic ignition |
| Transmission System | Automatic F/N/R, CVT, Chain drive |
| Length x Width x Height | 1800 × 1060 × 1130 mm |
| Wheelbase | 1150 mm |
| Minimum Ground Clearance | 155 mm |
| Seat Height | 810 mm |
| Net Weight | 185 kg |
| Rated Load Capacity | 100 kg |
| Fuel Tank Capacity | 6.5 L |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Front Tire | 23×7-10, tubeless |
| Rear Tire | 22×10-10, tubeless |
