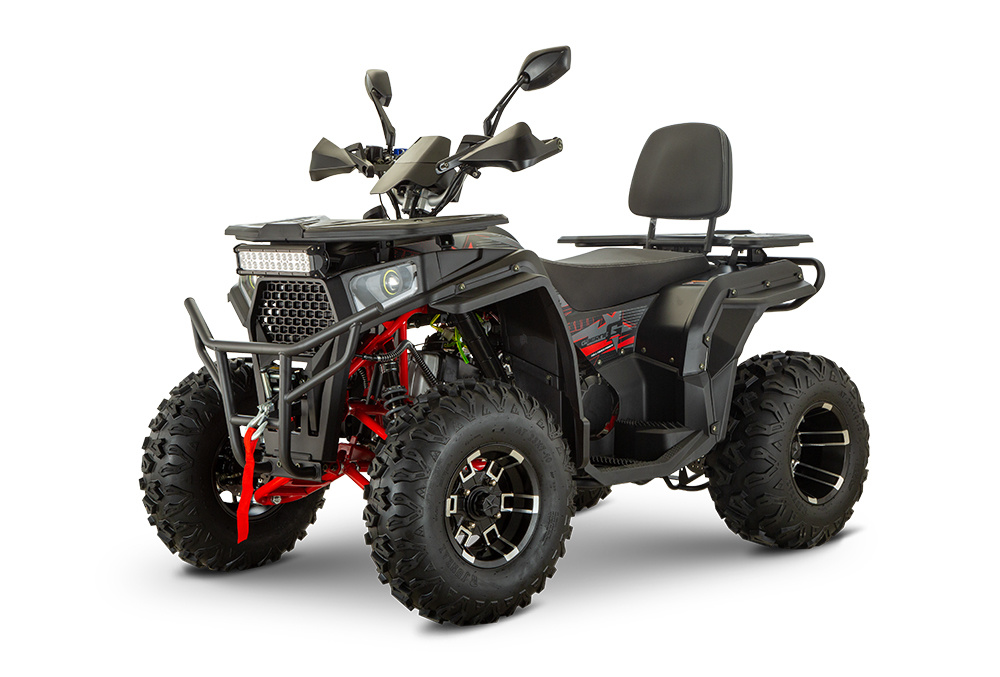

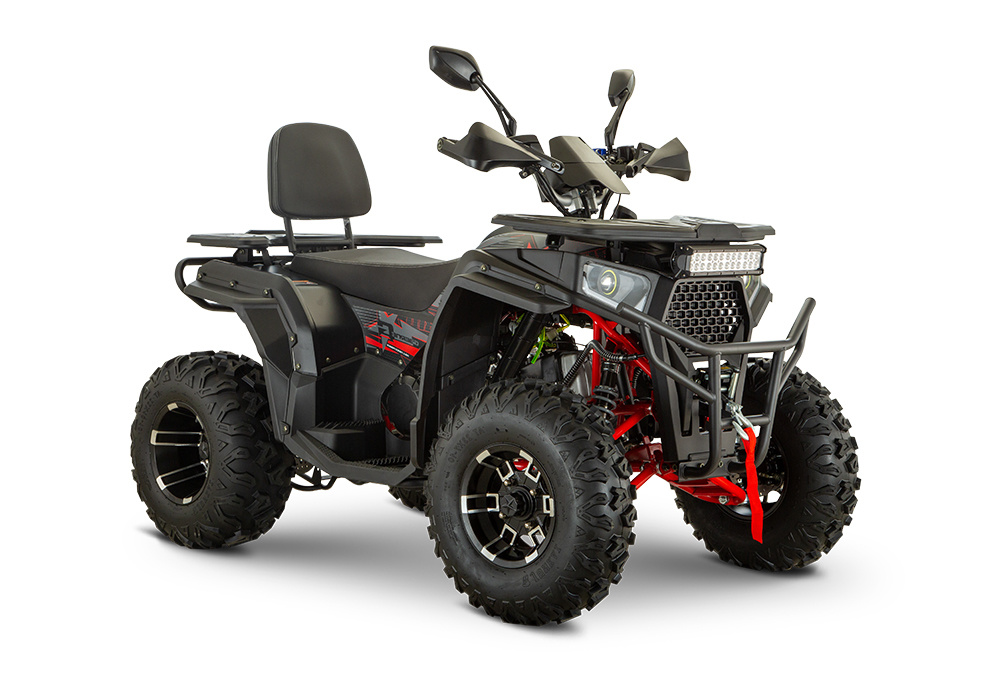

AFB250
OVERVIEW
| Engine Type | Transmission System | Suspension |
| 4-stroke, single-cylinder, oil & air-cooled, horizontal, with balancer | Automatic F/N/R, CVT, Chain drive | Independent Double A-Arm |
| Maximum Speed | Dimension | Seat Height |
| ≥ 60 km/h | 1895 × 1080 × 1110 mm | 820 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Engine Type | 4-stroke, single-cylinder, oil & air-cooled, horizontal, with balancer |
| Displacement | 230.9 ml |
| Bore × Stroke | 70 × 60 mm |
| Maximum Power | 11.0 kW / 7000 rpm |
| Maximum Torque | 16.5 N·m / 6000 rpm |
| Ignition System | C.D.I. electronic ignition |
| Transmission System | Automatic F/N/R, CVT, Chain drive |
| Length x Width x Height | 1895 × 1080 × 1110 mm |
| Wheelbase | 1225 mm |
| Minimum Ground Clearance | 140 mm |
| Seat Height | 820 mm |
| Net Weight | 206 kg |
| Rated Load Capacity | 150 kg |
| Fuel Tank Capacity | 6.5 L |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Front Tire | 23×7-10, tubeless |
| Rear Tire | 22×10-10, tubeless |
