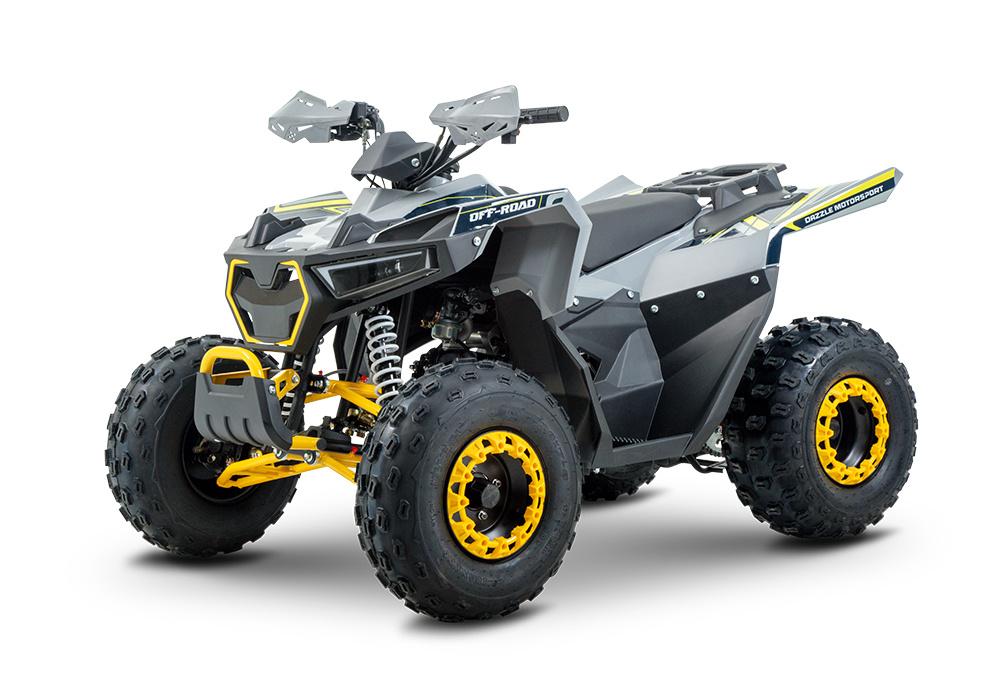

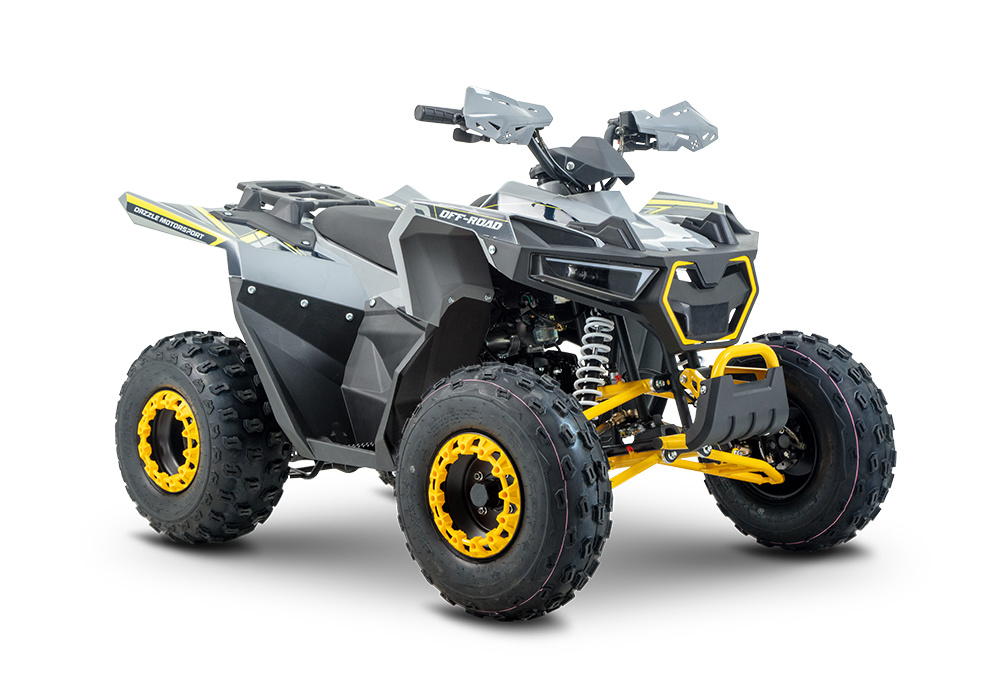

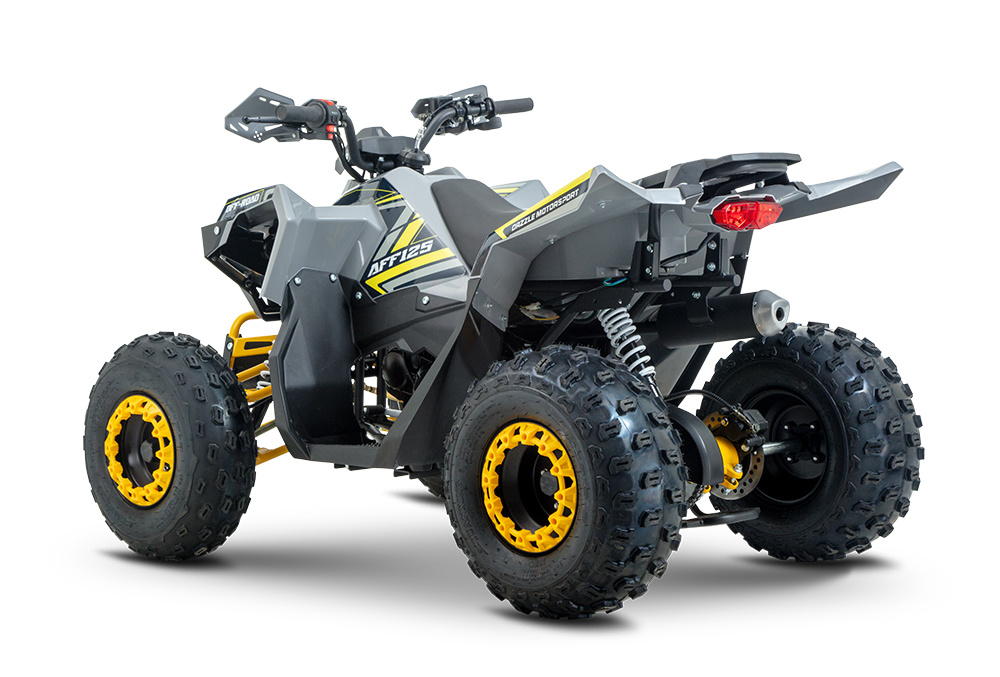

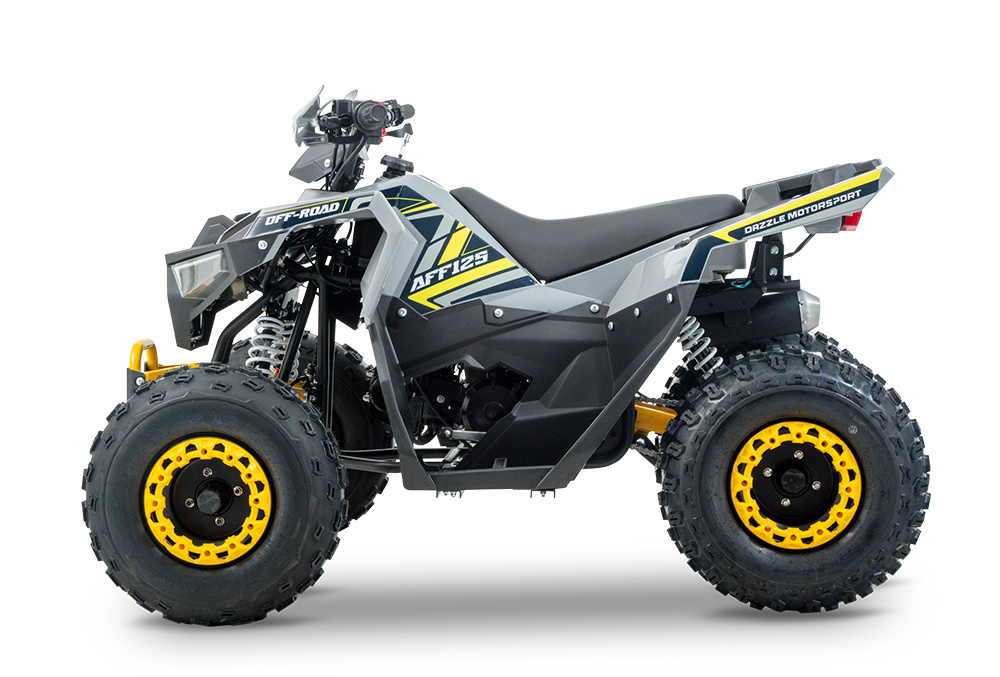

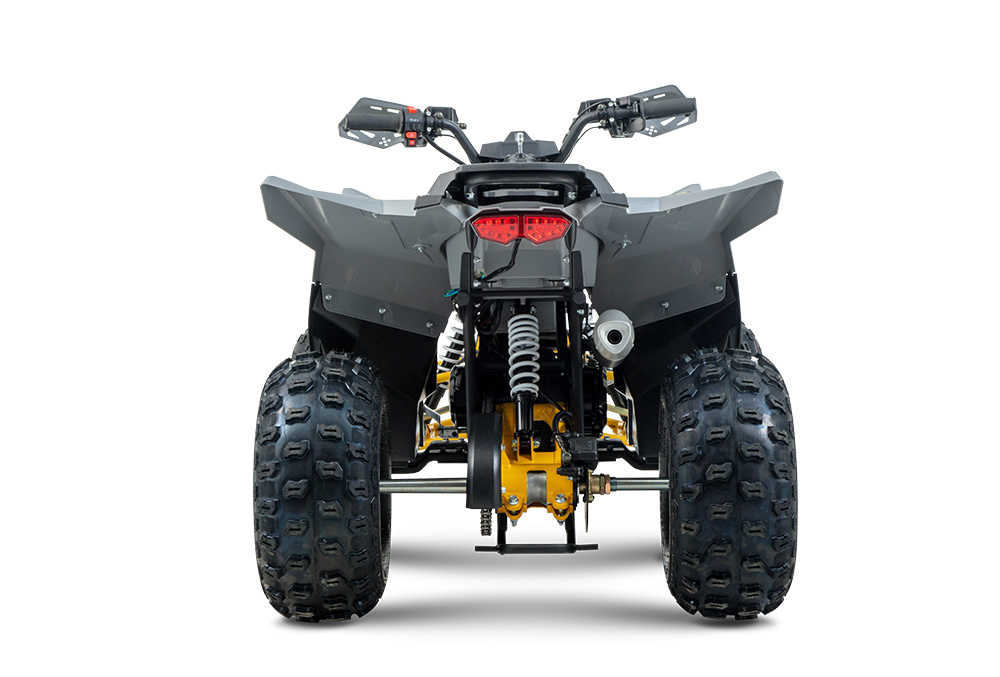

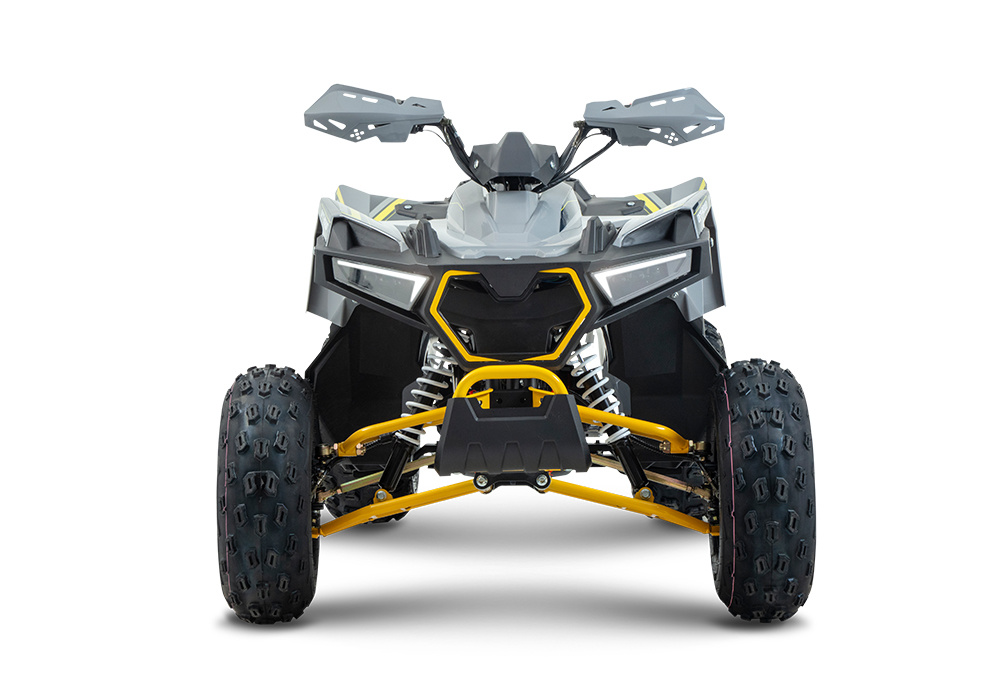

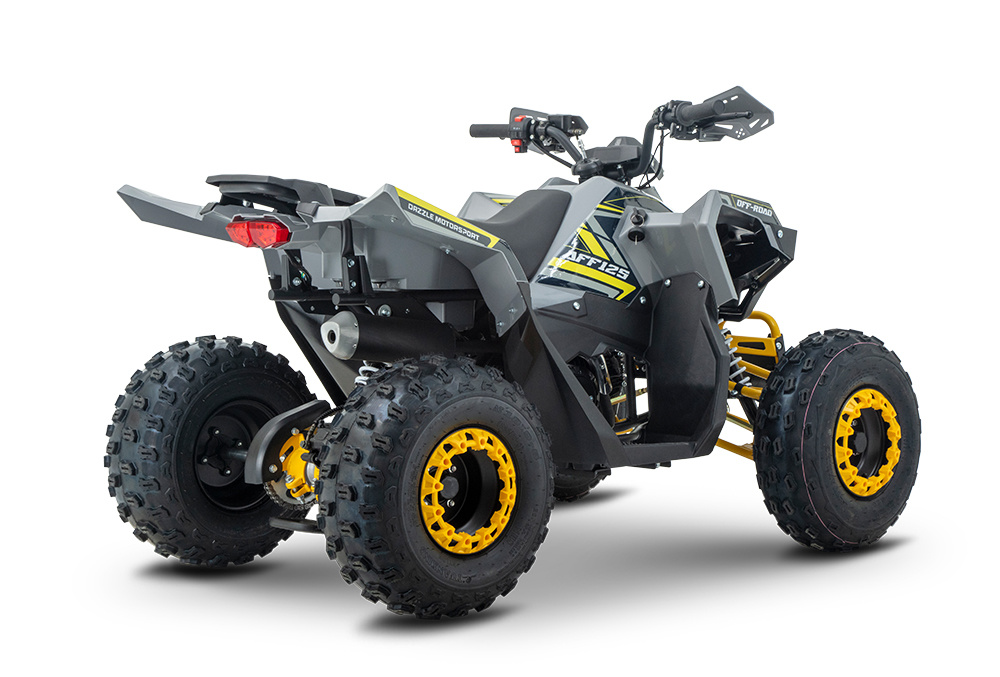

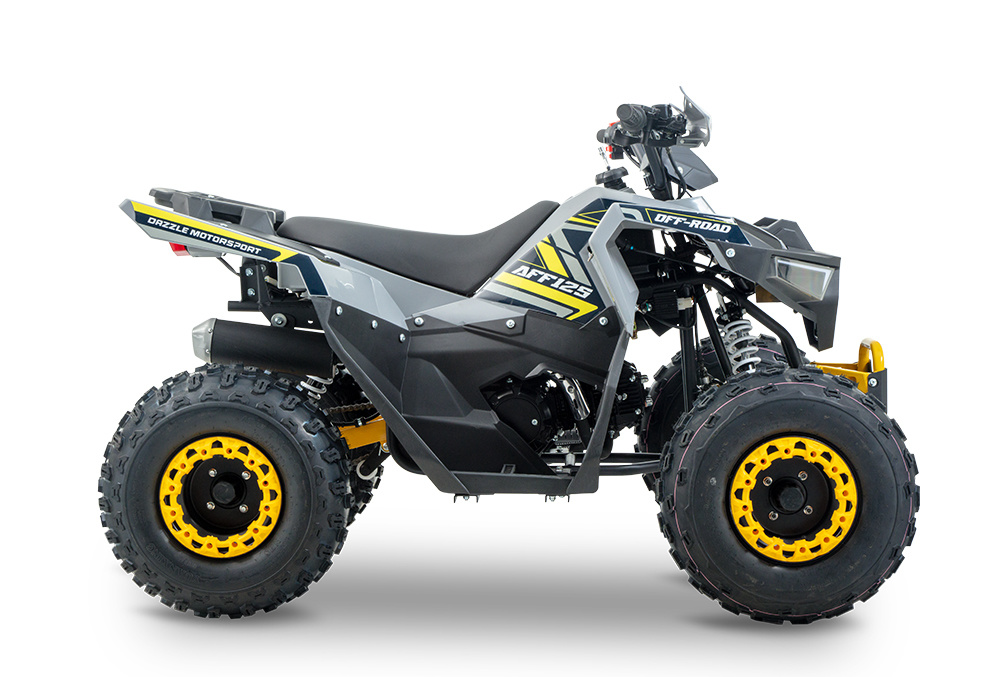

AFF125
OVERVIEW
| Engine Type | Transmission System | Suspension |
| 4-stroke, single-cylinder, air-cooled, horizontal | Automatic, Chain drive | Independent Double A-Arm |
| Maximum Speed | Dimension | Seat Height |
| ≥ 45 km/h | 1480 × 1040 × 950 mm | 700 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Engine Type | 4-stroke, single-cylinder, air-cooled, horizontal |
| Displacement | 120 ml |
| Bore × Stroke | Ф52.4 × 55.5 mm |
| Maximum Power | 5.6 kW / 7500 ± 500 rpm |
| Maximum Torque | 8.8 N·m / 5500 ± 500 rpm |
| Ignition System | C.D.I. electronic ignition |
| Transmission System | Automatic, Chain drive |
| Length x Width x Height | 1480 × 1040 × 950 mm |
| Wheelbase | 1015 mm |
| Minimum Ground Clearance | 110 mm |
| Seat Height | 700 mm |
| Net Weight | 103 kg |
| Rated Load Capacity | 82 kg |
| Fuel Tank Capacity | 5.4 L |
| Front Suspension | Independent Double A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Hydraulic disc brake |
| Rear Brake | Hydraulic disc brake |
| Front Tire | 18×7-8, tubeless |
| Rear Tire | 18×9-8, tubeless |
