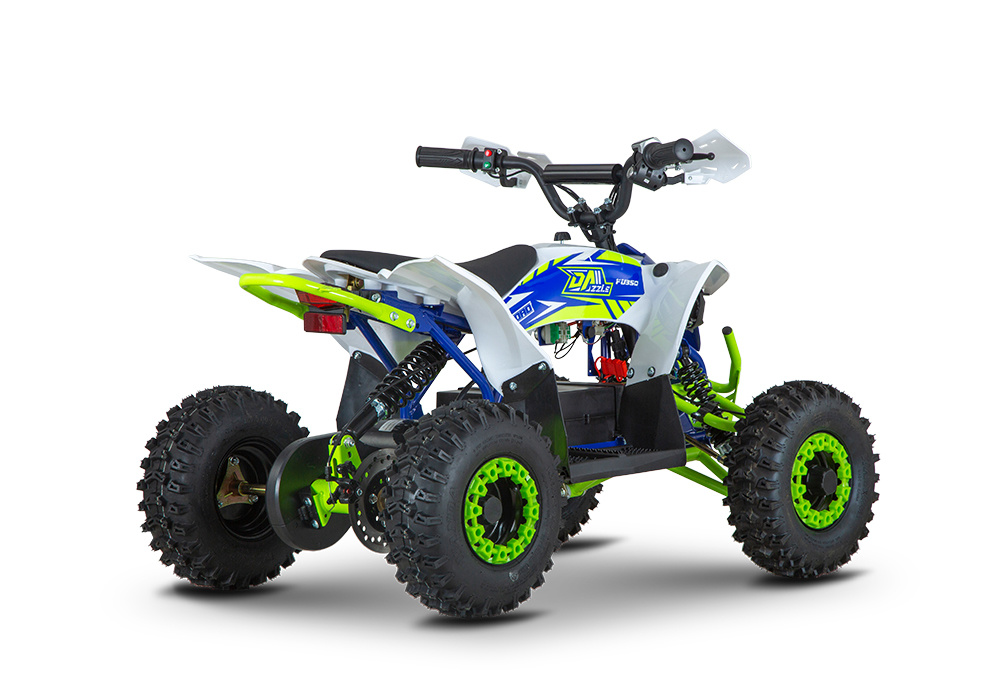

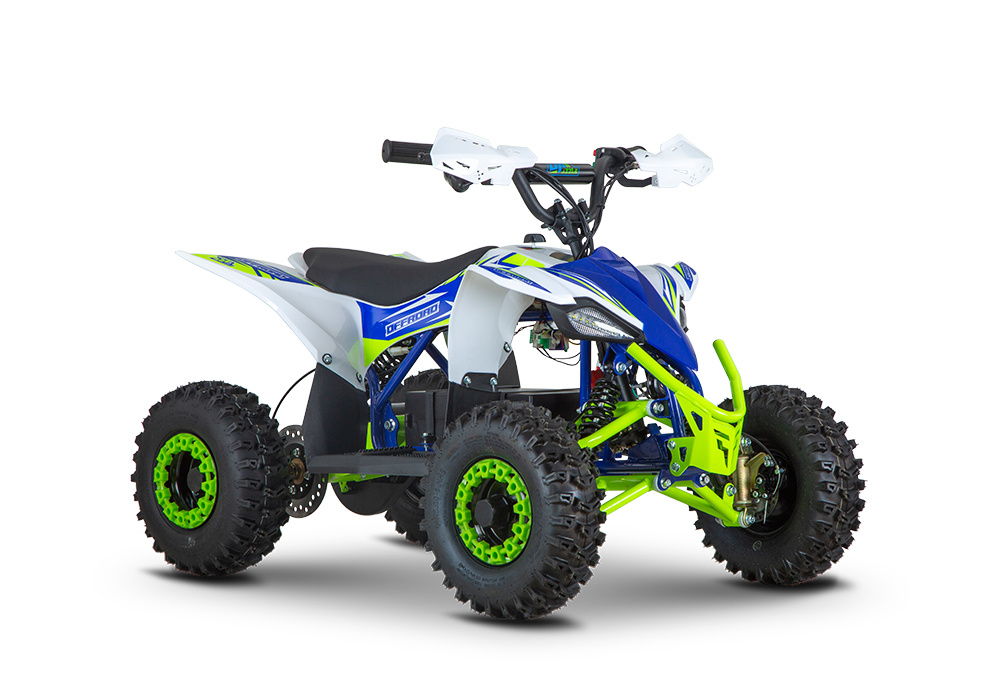

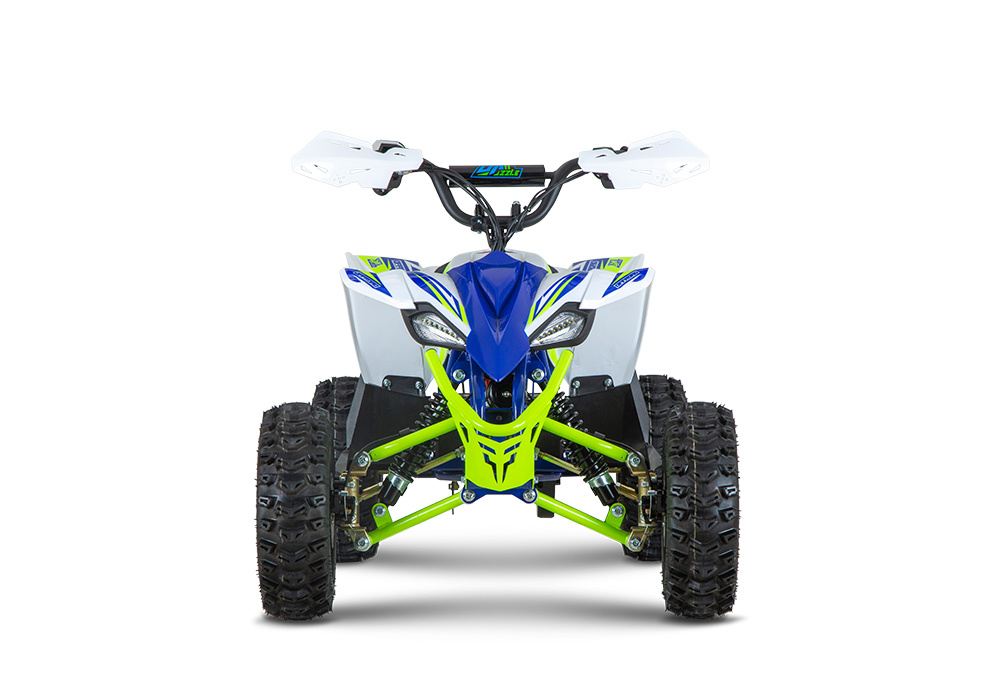

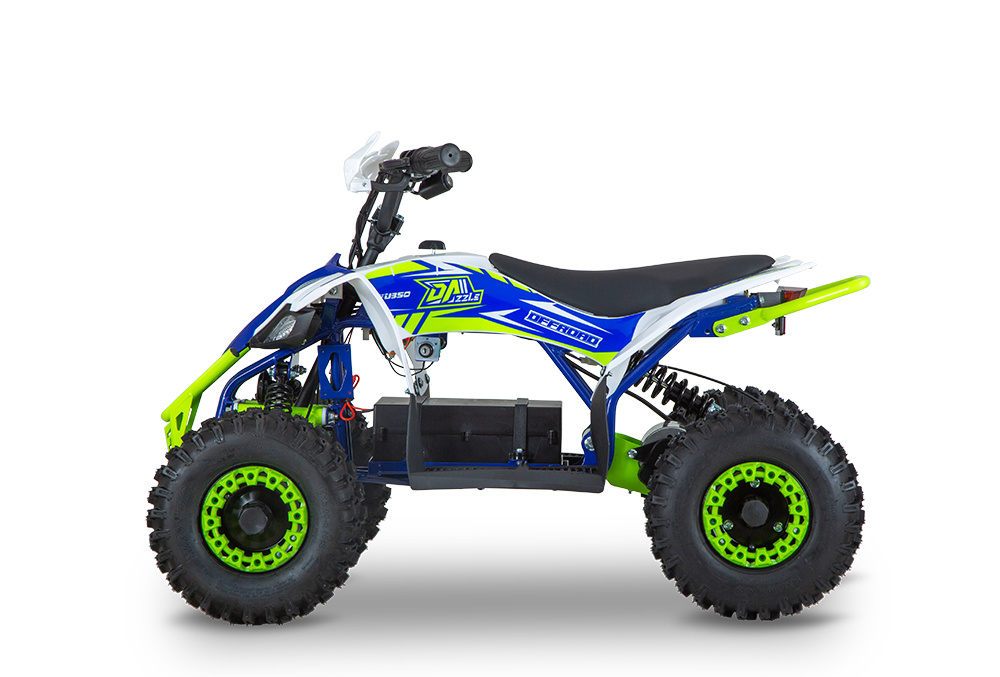

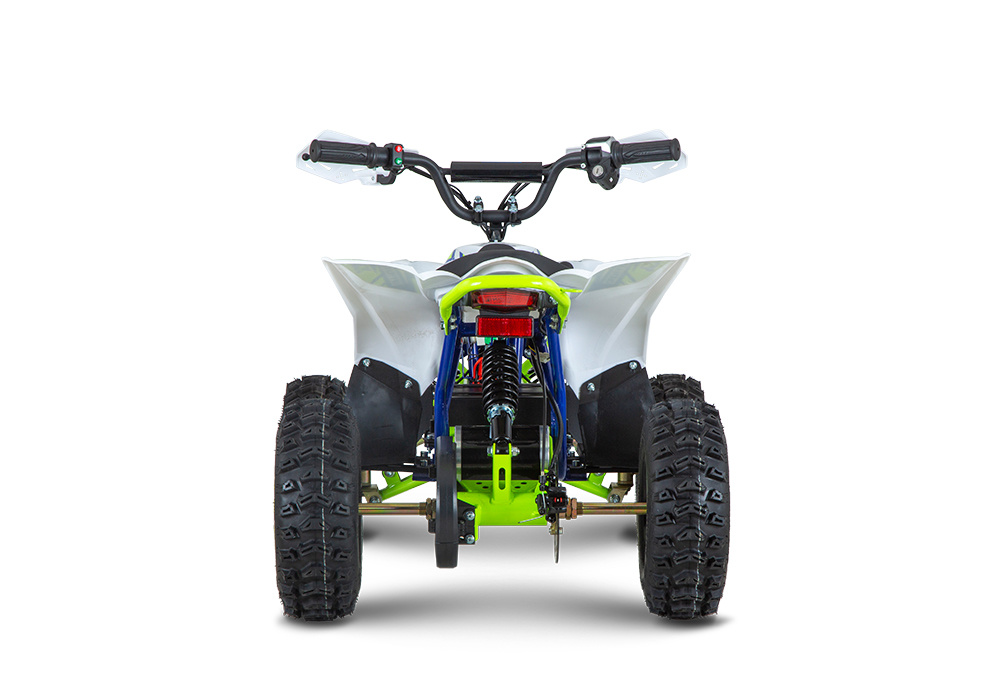

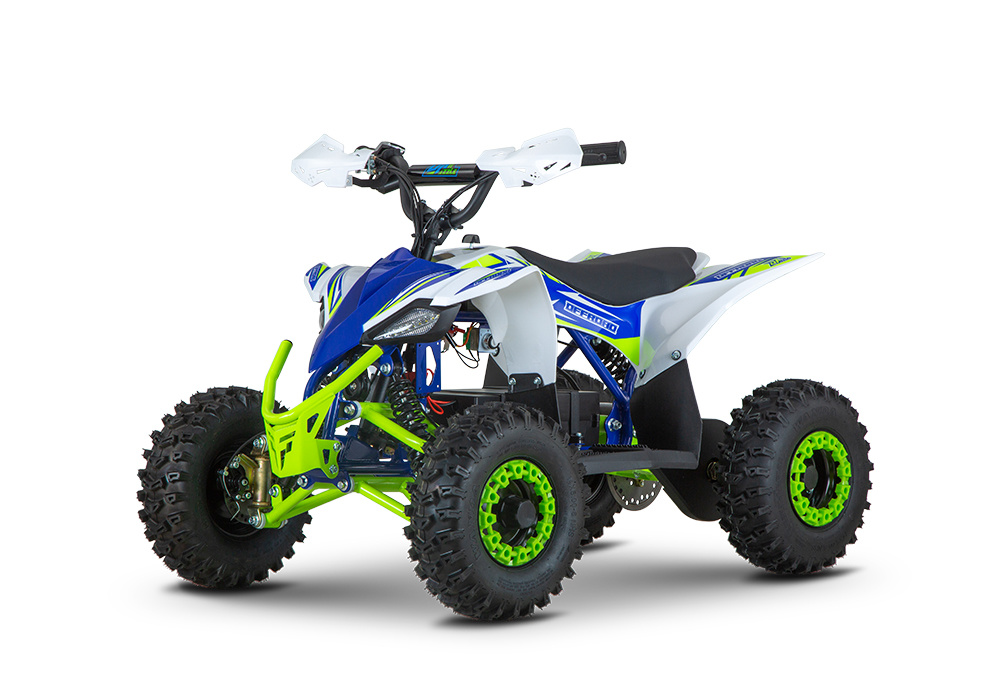

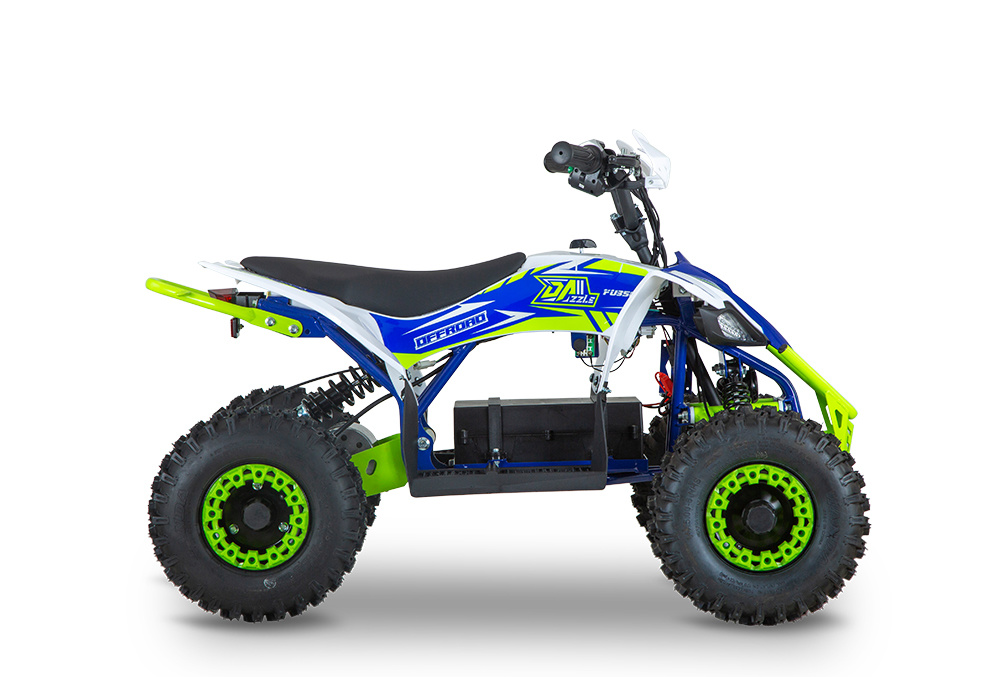

FU1200
OVERVIEW
| Motor Type | Battery | Range |
| Brushed motor | 48V / 12AH | 15 km |
| Maximum Speed | Dimension | Seat Height |
| ≥ 23 km/h | 1170 × 760 × 770 mm | 565 mm |
SPECIFICATIONS
Engine
Dimensions
Chassis
| Motor Type | Brushed motor |
| Motor Power | 1000W |
| Rated Voltage | 48V |
| Drive Type | Chain drive |
| Length x Width x Height | 1170 × 760 × 770 mm |
| Wheelbase | 770 mm |
| Minimum Ground Clearance | 80 mm |
| Seat Height | 565mm |
| Net Weight | 66 kg |
| Rated Load Capacity | 65 kg |
| Range | 15 km |
| Front Suspension | Independent Single A-Arm |
| Rear Suspension | Solid Rear Axle |
| Front Brake | Mechanical disc brake |
| Rear Brake | Mechanical disc brake |
| Front Tire | 14×4.10-6, tubeless |
| Rear Tire | 14×5.00-6, tubeless |
